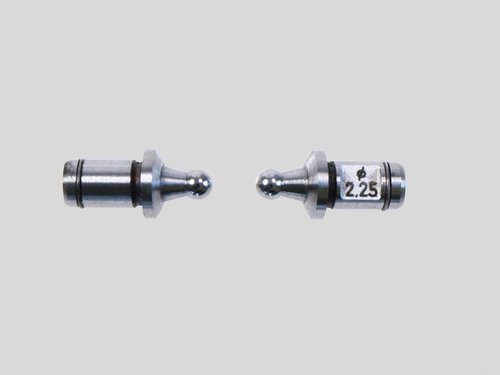

Ball anvil Multimar 844 Tk

Ball anvil Multimar 844 Tk
show (scroll to) description & details
Product number: 4500362
844 Tk Ball anvil 5.5 mm, carbide
Mounting shaft diameter 3.5 mm
Shaft length 6 mm
Product price
165,50 €
Variants
Application
  • Especially suited for the measurement of internal or external helical gear wheels
  • Use of convex contours
  • Use for cone measurements
Product features
  • Measuring ball made of carbide
  • With cylindrical mounting shank and retainer ring which allows free rotation inside the bore of measuring arms 844 Te
  • Manufacturing tolerance ball ± 2 µm

Multimar 844 Tk | Art. no. 4500362

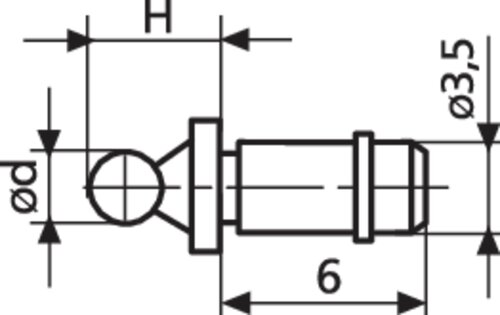

dimensionPicture
