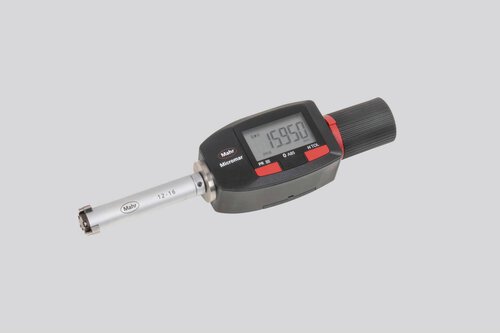

Digital 3-point inside micrometer Micromar 44 EWRi

Digital 3-point inside micrometer Micromar 44 EWRi
show (scroll to) description & details
Product number: 4191310
Digital 3-point inside micrometer Micromar 44 EWRi
For measuring of:
  • Through holes
  • Blind holes

IP protection category: IP 65
Data interface: Integrated Wireless
DIN 863-4
Measuring range 20 - 25 mm mm
Resolution mm/inch 0.001 / .00005"
Package contains: Basic unit 44 EWRi-g, measuring head 44 Ak, instruction manual, battery, case
Product price
1.495,00 €
5,60 €
Please enter the label
Functions RESET (set display to zero), ABS (display can be set to zero without losing reference to preset), mm/inch, PRESET (dimension presetting) - 3 values possible, TOL (Tolerance and warning limit setting) - 3 tolerances possible, LOCK function (key lock), HOLD (freeze current measured value), DATA (data transmission), Bi-directional data interface (for data retrieval - transfer of parameters - remote control - individual function locks via MarCom software)
Application For measuring of:
  • Through holes
  • Blind holes
Product features
  • Uniquely user-friendly with practical functions
  • Optimal handling due to lightweight and compact basic unit
  • Large, high-contrast numerical display with clear tolerance icons
  • Self-centering measuring head consists of 3 anvils (offset 3 x 120°)
  • Measuring anvils from 12 mm are carbide tipped
  • From 12 mm measuring anvils for measurements up to the bottom of the bore
  • From 40 mm measuring head housing made of anodized aluminium
Energy supply Battery, battery life up to 4 years (approx 10000 hrs without wireless transmission)
Data interface Integrated Wireless
Scope of delivery Basic unit 44 EWRi-g, measuring head 44 Ak, instruction manual, battery, case
Micromar 44 EWRi | Art. no. 4191310
dimensionPicture
