Digital special calipers MarCal 16 EWR-SA

Digital special calipers MarCal 16 EWR-SA
show (scroll to) description & details
Product number: 4103077KAL
Digital special calipers MarCal 16 EWR-SA
Measuring range : 0 - 140 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
Product price
858,50 €
Variants
Add service
Test interval
Issue a calibration certificate for
Place of use
Please enter the place of use
5,60 €
Please enter the label
Functions ON/OFF, AUTO-ON / OFF, mm/inch, LOCK function (key lock), RESET (set display to zero), DATA (data transmission via connection cable)
Application Inward-angled measuring tips for measuring wall thicknesses and recesses on shafts
Product features
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
Package contains battery, test certificate, instruction manual, case
MarCal 16 EWR-SA | Art. no. 4103077KAL

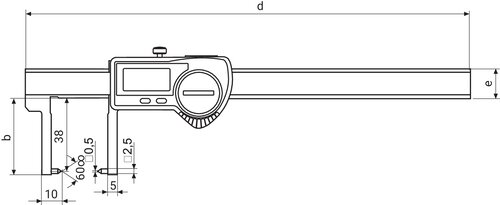

dimensionPicture
